Highlight Features
- IEEE 802.11ax/be with backward compatibility to Wi-Fi 6/5/4
- Aggregate wireless throughput up to 3.57 Gbps
- Dual-band 2×2 MIMO architecture (2.4 GHz + 5 GHz)
- 688 Mbps @ 2.4 GHz and 3 Gbps @ 5 GHz
- 240 MHz channel bandwidth and 4096-QAM for higher network efficiency
- 2.5 Gigabit Ethernet uplink with IEEE 802.3af/at PoE
- IEEE 802.3az is the IEEE standard for Energy Efficient Ethernet (EEE).
Models
AIR-AP605C-AX-R2
Series
WLAN APS & ACCESS CONTROLLERS

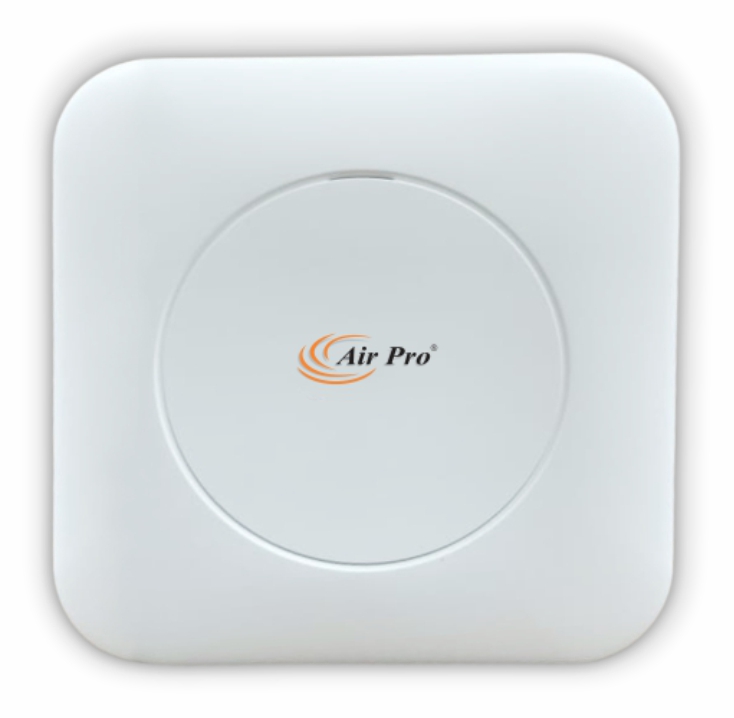

AIR-AP605C-AX-R2
PRODUCT OVERVIEW
What This Product Does:-
The AirPro AIR-AP605C-AX-R2 is a next-generation enterprise-class dual-band Wi-Fi 6 indoor access point engineered to deliver high-speed, secure, and reliable wireless connectivity for modern enterprise environments. Built on the latest IEEE 802.11ax/be standard with backward compatibility for IEEE 802.11ax (Wi-Fi 6) and earlier wireless technologies, the access point provides an aggregate wireless throughput of up to 3.57 Gbps, making it ideal for bandwidth-intensive and high-density deployments.
The AIR-AP605C-AX-R2 features dual-radio architecture, operating simultaneously in the 2.4 GHz and 5 GHz frequency bands. It supports advanced Wi-Fi technologies including 4096-QAM modulation, 240 MHz channel bandwidth, OFDMA, MU-MIMO, Beamforming, BSS Coloring, and intelligent RF optimization to maximize network efficiency, increase capacity, and reduce latency in high-density wireless environments.
The 2.4 GHz radio delivers data rates of up to 688 Mbps, providing reliable coverage for legacy and IoT devices, while the 5 GHz radio supports speeds of up to 2.882 Gbps, enabling exceptional performance for real-time applications such as UHD video streaming, cloud collaboration, virtual desktops, voice communications, and AI-enabled enterprise applications.
Designed for seamless deployment and simplified network management, the AIR-AP605C-AX-R2 supports Standalone (Fat), Controller-Based (Fit), and Bridge operating modes, allowing organizations to deploy the access point in a wide range of enterprise network architectures. With support for 2.5 Gigabit Ethernet uplink, PoE (IEEE 802.3af/at), advanced enterprise security, centralized cloud management, and intelligent roaming, the AIR-AP605C-AX-R2 provides a scalable, future-ready wireless infrastructure for digital transformation initiatives.
The AIR-AP605C-AX-R2 is an ideal solution for enterprise campuses, corporate offices, educational institutions, healthcare facilities, hospitality, government organizations, retail environments, warehouses, and manufacturing facilities, where high-performance wireless connectivity, enterprise-grade security, and simplified management are essential.
AIR-AP605C-AX-R2
PRODUCT SPECIFICATIONS
| Features | AIR-AP605C-AX-R2 |
|---|---|
|
Feature/Description |
Up to 3.57 Gbps High-Speed Wi-Fi 6 Connectivity |
|
Wireless Standard |
IEEE 802.11a/b/g/n/ac/ax/be |
|
Frequency Bands |
2.4 GHz + 5 GHz |
|
Radio Architecture |
Dual Radio, Dual Band |
|
MIMO |
2×2 2.4 GHz + 2×2 5 GHz |
|
Maximum Data Rate |
Up to 3.688 Gbps |
|
2.4 GHz Throughput |
Up to 688 Mbps |
|
5 GHz Throughput |
Up to 3000 Mbps |
|
Antenna Gain |
5 dBi |
|
Transmit Power (2.4 GHz) |
Up to 23 dBm |
